MCT Sealing System Cable and pipe penetration sealing system TSC-E Series blind plug module
Welding - rectangular
The TSC-E Series blind plug module is 60mm long and can be used as a redundant sealing system without spare parts to fill the excess sealing space to save costs or match a better module configuration for the standard frame.
Product Content
T SWS-X+X...X×N -AO Frame
TSC-M Series Module
TSC-E Series blind plug module
Tensioner
SL-55 Grease
Interlayer
Product characteristics
| Fire Rate level | GB23864>1h、A-0、A-60 |
| Protection leve | IP68 |
| Watertightness | 0.3MPa |
| Airtightness | 0.3MPa |
| Lifespan | 30 years |
Sealing module industry applications
Customized product services
Cable/pipe sealing solutions that meet diverse needs can provide customized products and services.
Flexible application to different Dimensions of cables and pipes
EMC Solutions for electrical safety
For explosion protectionin hazardous areas solution
Suitable for armoured cable solution
be used in fresh water, chilledwater and waste water pipelines
be installed in wet conditions and running water
Non-welding solutions are available
Built-in spare capacity, easy to install Upgrade and renovate
Suitable for under ground application solution
Our Advantages
- 20 years of experience
- Source factory
- OEM/ODM customization
- Fast production and
- delivery
- Multiple patented
- technologies
- Comply with IATF16949
- ISO9001 standards
- Total factory area 50,000 m²
- Fireproof and waterproof
- EMI/EMP electromagnetic shielding
- Lifespan up to 30 years
Product Parameters
.
The versatility of the penetration sealing system has been recognized by all walks of life. The blind plug module is a module used to reserve expansion and fill surplus space. It is widely used in shipbuilding, marine engineering, petrochemical, electric power and telecommunications, national defense and military industry, sewage treatment, industrial and civil construction, etc. Once a dangerous state occurs in a specific environment, the sealing module can prevent the explosion shock wave, flame, smoke, gas and water from reaching the adjacent structural parts through the cable and pipe penetrations.
The TSC-E Series blind plug module is 60mm long and can be used as a redundant sealing system without spare parts to fill the excess sealing space to save costs or match a better module configuration for the standard frame.
Material: EPDM
Combined with other corresponding rectangular sealing accessories, it can form a complete sealing system

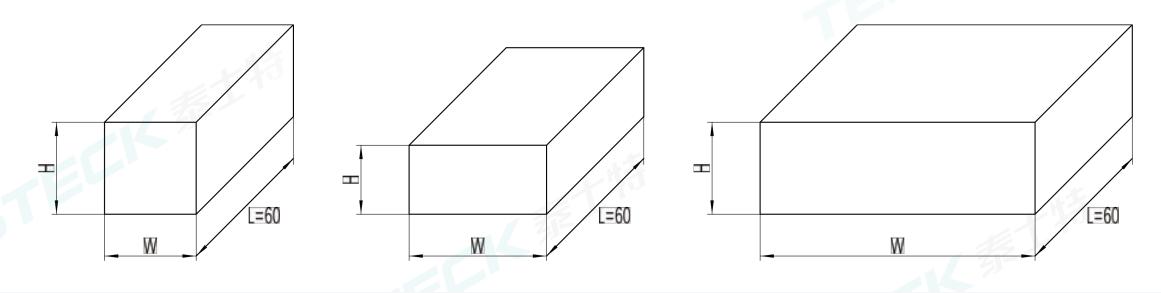

Technical parameters
model | W | H | L |
TSC-E20x20 | 20 | 20 | 90 |
TSC-E30x30 | 30 | 30 | 60 |
TSC-E40x5 | 40 | 5 | 60 |
TSC-E40x10 | 40 | 10 | 60 |
TSC-E40x20 | 40 | 20 | 60 |
TSC-E40x40 | 40 | 40 | 60 |
TSC-E60x5 | 60 | 5 | 60 |
TSC-E60x10 | 60 | 10 | 60 |
TSC-E60x20 | 60 | 20 | 60 |
TSC-E60x60 | 60 | 60 | 60 |
TSC-E80x80 | 80 | 80 | 60 |
TSC-E90x90 | 90 | 90 | 60 |
TSC-E120x5 | 120 | 5 | 60 |
TSC-E120x10 | 120 | 10 | 60 |
TSC-E120x20 | 120 | 20 | 60 |
TSC-E120x120 | 120 | 120 | 60 |
Note: Special specifications can be customized, please contact us by email for detailed information. | |||
Related Certifications
TST SEAL have undergone rigorous testing and inspection: chemical analysis, aging test, vertical combustion test, acetic acid salt spray test, toxicity test, watertight and airtight performance test, electrical strength test, dust and vibration resistance test, corrosion resistance test, fire retardant performance test, noise resistance performance test, etc.
